商品の詳細:
|
| 製品タイプ: | 生産ラインを作るペット ストラップ | 原材料: | ペット薄片か100%リサイクルされた材料 |
|---|---|---|---|
| ペット厚さの範囲: | 0.6-12mm | ペット革紐の幅: | 9~32mm |
| 容量: | 200KG/h | 駆動方式: | 電気 |
| モーター: | シメンス | 電圧: | 顧客の工場に従って |

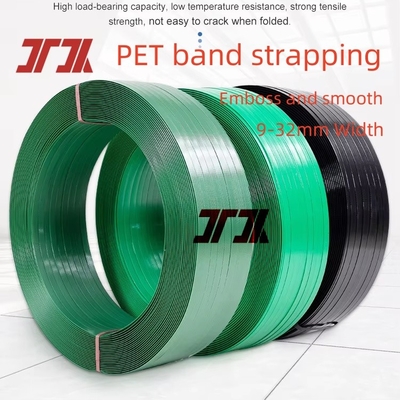

| ストラップの色: | グリーン/ピンク/イエロー/ブラック | 適用する: | 梱包材 |
| アフターサービス提供: | ビデオ技術サポート,オンラインサポート | 保証: | 1 年 |
| ハイライト: | 100cc メルトポンプ PET ストラップ機,9-32mm PET 梱包バンド押出機,32mm PET 梱包バンド押出機 |
||

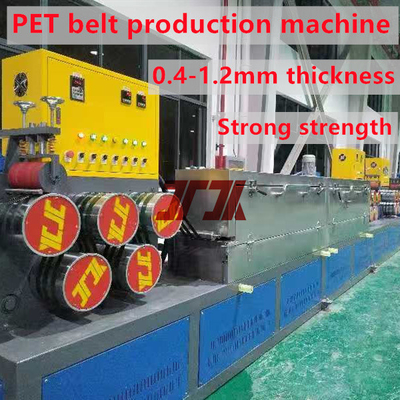

200kg / H PET Strap Packing Belt Extrusion Line Band Extruding Machine With Automatic Winder
PP packing straps extrusion/production machine
Materials: PET virgin material, or 100% recycling PET flakes and PET crushed material.
Application: This machine can be used to meet the needs of cartons, tobacco, clothing, paper, electronics, wooden boxes, fruit, electrical (such as refrigerators, washing machines, color TV), food and other industries.
PET Strap Production Line Machine List
| NO. | Item | Specification |
| 1 | Power | According to customer's factory voltage |
| 2 | Material | PET raw material or 100% PET bottle flakes recycled |
| 3 | Capacity |
PETJT90:200kg/h PETJT100:250kg/h PETJT125:350kg/h |
| 4 | Product size |
Width:9-32mm Thickness:0.6-12mm |
| 6 | Mid-height of extruder | 7000mm |
| 7 | Installation power |
PETJT90:200KW PETJT100:250KW PETJT125:300KW |
| 8 | Humidity | <85% |
| 9 | Temperature | 0-40 degree |
| 10 | Cooling tower capacity | 30T/H or 50T/H |
| 11 | Installation Dimensions |
PETJT90:45*2.0*7.0M PETJT100:45*2.0*7.0M PETJT125:60*3.0*8.0M |
| 12 | Product color | Green/Black/Pink/Yellow |
| 13 | Factory dimension |
35m*(3~6)m*(4~6)m 45m*(3~6)m*(4~6)m If your factory not big enough,please contact with us,our engineer can according to your size to design |

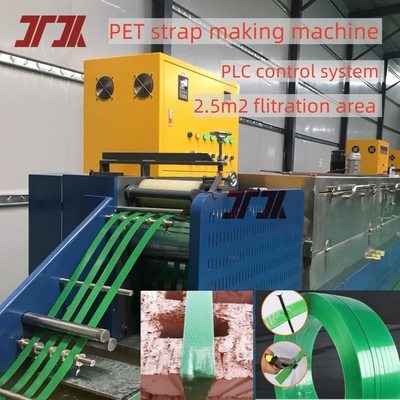

Features of PET strap making machine
1.High and stable production efficiency
2.Good quality machine with competitive price
3. can equip XINJIE PLC control, or designed according to customer's requirements
DETAILS ABOUT PET STRAP MAKING MACHINE
1. Components of pp pet packing belt machinery:
PET Strap Production Line consists of dehumidifying and crystallizing system, extruder, screen changer, mold, oven, haul-off, and winder, etc.
2. Production Process of PET Machinery
Material→ Dehumidifying and Crystallizing → Extruding → Mold → Cooling → Haul-off →Oven Heating →Pre-heating → Drawing and Stretching →Drawing and Stretching → Embossing →Hot Forming → Drawing → Winding
3. Application
With 100% bottle flakes recycled material, to produce various specifications of PET strap. It has been widely used in steel, chemical industry, aluminum, paper making, brick kiln, tobacco, electronics and textile and timber industries.
Our service
1.Free repair within 1 year of guarantee on the condition of operate the machine in the right way, do not include the daily maintaining
2. Our factory provide machine testing when customer come to our factory to see this machine.
3.We provide detail machine technical specification,installation book, operating manual.
4.We can provide engineers to customer's factory to help installation and training workers if customer required.
