商品の詳細:
|
| ビデオの発信検査: | 提供された | 商標: | Jiatuo China |
|---|---|---|---|
| 名前: | PPストラップ製造機 | ストラップコアタイプ: | PPペーパー/プラスチック |
| ストラップ速度: | >200〜300m/min | ストラップ色: | 赤/緑/黒/黄色/白 |
| モーター: | シーメンス | ワインダー: | ダブルステーションワインダー |
| 厚さ: | 0.4-1.2mm | 幅: | 5-19mm |
| スクリュー: | シングル/ダブル | 容量: | 120-150kg/h |
| ハイライト: | PP strapping production line,high-speed PP extruder,5-19mm PP strapping machine |
||
PP strapping plastic machinery 5-19mm PP strapping production line High-speed PP extruder
PP strapping belt production line is a high-end intelligent extrusion equipment that can produce PP belt: width: 5-19mm, thickness: 0.3-1.2mm
Raw materials-----PP strapping equipment can produce plastic raw materials:
100%recycled materials or PP polypropylene new materials to produce strapping tape;
Screw-----The equipment adopts high-precision high-quality screws, adopts well-known brands, and has unique parameter design. It has the advantages of large extrusion volume, good plasticization, high hardness and wear resistance; equipped with a quantitative extrusion system, the width and thickness of the produced belts are the same, the error range is small, and it meets the national strapping tape acceptance standards;

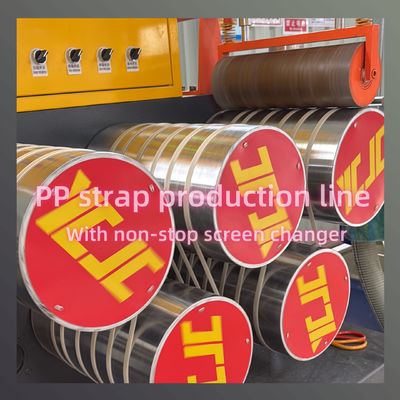

Automatic screen changer------Equipped with a non-stop automatic screen changer, the screen does not need to be stopped, and the efficiency is maximized. 4-net circulation large-area filtration does not require frequent screen changes.
Extrusion parameter specification table
| Product Name | PP Strap Band Extrusion Line |
| Material | PP Polypropylene New Material/recycled Material |
| Strap Strength | 350-650kg |
| Production Capacity | 250-300kg/h |
| Winding Method | Manual/automatic |
| Video Outgoing-Inspection | YES |
| Equipment Layout Diagram | Customized |
| Equipment Voltage | Three-phase 380v /50Hz ( Customized ) |
| Warranty | 1 Year |
| Screw Material | 38CrMoALA |
The PP Strap Making Machine is an advanced, fully automated system designed for producing high-quality PP straps. Equipped with a video inspection system, it ensures consistent strap quality. Ideal for packaging, strapping, binding, and reinforcing, this machine is reliable, efficient, and maximizes productivity. It offers a cost-effective solution, making it the perfect choice for any strap production business

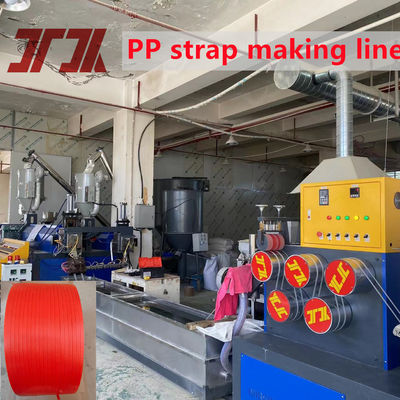

The extrusion Line consist of the following parts
Material→Stirring raw material→Pre crystallization drying→Extruding→Cooling→Oven preheating→Primary stretching→Secondary stretching→Embossing→Hot forming→Cooling→Winding(finished product)
Feature of PP strap making machine
1.Equipped with a non-stop automatic screen changer, the screen change does not need to be stopped,and the benefit is maxmize. 4 net circulation large area filtering, no need to change the net frequently.
2.The unique cooling cycle system and multiple sets of shaped guide rails make the packing belt cooler and shrink better and more accurate in size. The internal reciprocating winding method makes full use of heat energy and effciently reduces power loss.
3.The equipment adopts intelligent PLC Chinese/English control system, simple to understand, beautiful, durable, long life, low failure rate. The equipment has an exclusive parameter memory system, the data of each specification after production can be stored,the next production can directly call out the parameters.
4.The equipment is equipped with a defecation-correcting device, and the winding is neat and in the shape of knife cutting. The finished products are packed with good color and quality.
