商品の詳細:
|
| 製品タイプ: | PETストラップ製造機械 | 原材料: | ペット薄片か100%リサイクルされた材料 |
|---|---|---|---|
| 容量: | 200-600kg/h | ペット革紐の幅: | 9-32mm |
| ペット厚さの範囲: | 0.4-1.2mm | 駆動型タイプ: | 電気 |
| 電圧: | 顧客の工場によると | 製品の色: | 緑/ピンク/黄色/黒 |
| モーター: | シーメンスモーター | 提供されるアフターセールスサービス: | ビデオ技術サポート、オンラインサポート |
| 応用: | パッケージ化された素材 | 保証: | 1年 |
PET strapping belt production line single screw 16mm pet strap manufacturing machine
DESCRIPTION OF PET STRAP MANUFACTURING MACHINE

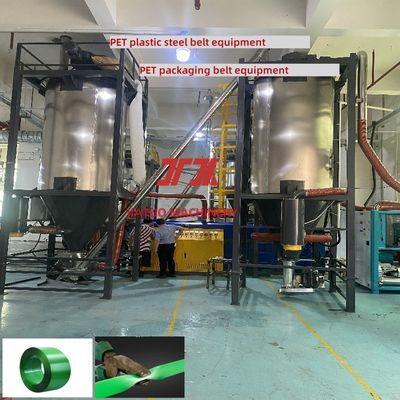

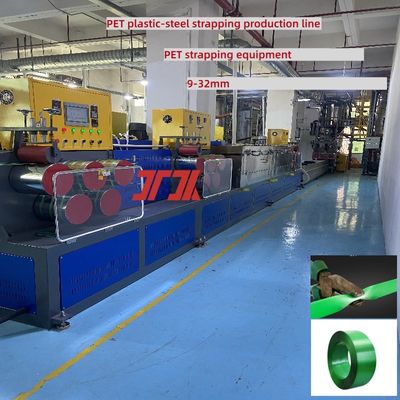

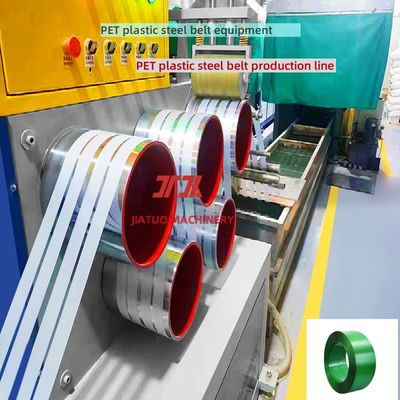

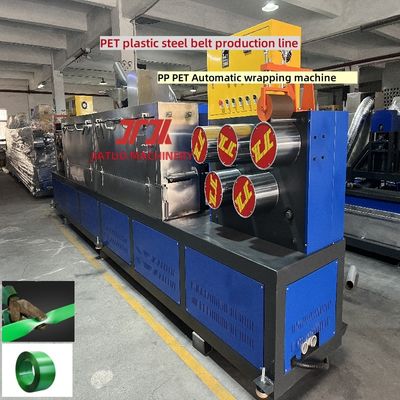

PET strapping belt production line
PET strapping belt production line is a new model of packing material machine, applying to advanced technology overseas. PET packing strap is the best replacement for old packing material, and is accepted in word packing industry. Nowdays, the PET PP packing strap hasebeen widly used in many industry such as paper steel, chemical fiber, cotton, printing wood and so on.
FEATURES:
1. Good tensile strength----PET strapping belt production line has the tensile strength of steel tape, good ductility, good impact resistance, not easy to break, and ensures the safety of product transportation.
2. Small elongation----Although PET strapping belt is a kind of plastic, its elongation changes very little, and its elongation is only 1/6 of polypropylene. It can maintain tension and make the expansion and contraction amount no longer change after packaging.
3. Strong temperature resistance----Experiments have proved that the melting point of PET strapping belt is about 260℃, and it can be used for a long time at 120℃ without deformation, and has good stability.
4. Good economic benefits----The density of PET strapping belt is 1.30~1.38g/cm3, which is only 1/6 of the density of steel tape (7.8g/cm3), equivalent to the length of 6-ton steel tape, and the price per unit length is relatively low.
EXTRUSION PARAMETERS TABLE
| Model | PET-2 | PET-3 | PET-4 | PET-6 | PET-8 |
| Raw materials | 100% Bottle flakes/crushed materials | ||||
| Number of tapes | 2 | 3 | 4 | 6 | 8 |
| Width (mm) | 9-32 | ||||
| Width (mm) | 0.4-1.2 | ||||
| Maximum line speed(m/min) | ≧150 | ≧150 | ≧150 | ≧150 | ≧150 |
| PLC control system | PLC | PLC | PLC | PLC | PLC |
| Screw Model | 90 | 100 | 125 | 150 | 180 |
| Reducer model | 200 | 250 | 280 | 315 | 350 |
| Dryer tank | 3000L | 4000L | 5000L | 6000L | 6000L |
| Dehumidifier | 1000 | 1000 | 2000 | 3000 | 3500 |
| Metering Pumps | 100CC | 100CC | 100CC | 100CC | 100CC |
| Screen Changer | Single cylinder | ||||
| Winding machine | Automatic winding/ Semi-automatic winding | ||||
| Production capacity /24 H | 5-6T | 7-8T | 10-12T | 12-15T | 18-20T |
ADVANTAGES:
Environmental protection ------ steel straps will rust when exposed to the air, and rust is highly permeable to packaging. PET strapping is beautiful and rust-free, eliminating unnecessary worries. It can also be recycled.
Good flexibility ------ safe operation: PET strapping does not have the sharp edges of steel straps, will not scratch packaging, and will not hurt your hands. No special tools are required for cutting, and even if it is very tight, it will not hurt your hands when cutting.
High-quality products ------- PET strapping has different colors, bright luster, and excellent quality. It is the most ideal packaging product for high-end packaging
FAQ
Q: What is the voltage of the PET strap manufacturing machine?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the PET strap manufacturing machine?
A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H
Q: What is the producible width of the PET strap manufacturing machine?
A: 9-32mm
Q: Can the PET strap manufacturing machine be customized?
A: Customization supported
Q: Where does the PET strap manufacturing machine come from?
A: China.
Q: What are the certifications for the PET strap manufacturing machine?
A: ISO CEO certification.
Q: What is the minimum order quantity for the PET strap manufacturing machine?
A: 1 set
Q: What is the weight of the PET strap manufacturing machine?
20T, 40GP container * 3PCS
