商品の詳細:
|
| 商標: | Jiatuo China | 消費電力: | 100kw |
|---|---|---|---|
| モーター: | Gugao | ストラップテンション: | 調整可能 |
| ストラップの厚さ: | 0.4-1.2mm | 保証: | 1年 |
| ネジ径（mm）: | 100mmは必要に応じてカスタマイズできます | ビデオ送信検査: | 提供された |
| 還元剤: | グマオ | ベルトの幅: | 5-19mm |

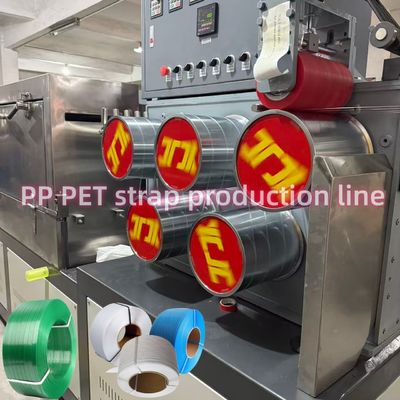

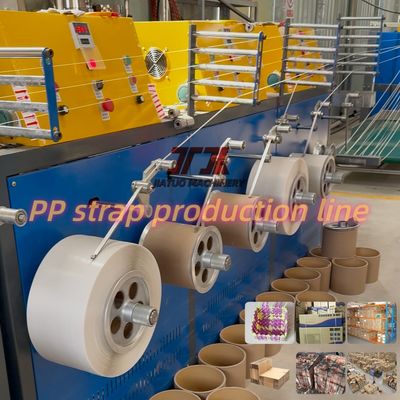

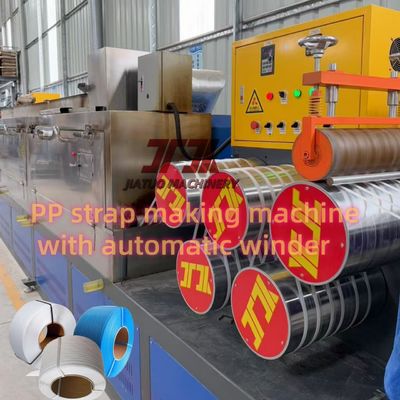

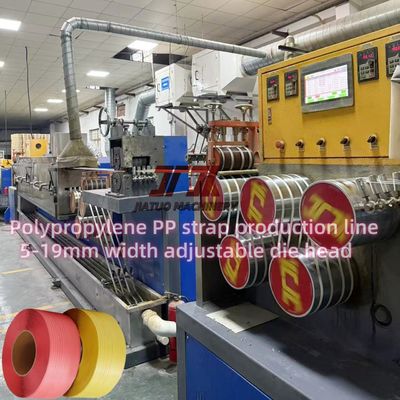

5-19mm PP Packing Strap making machine PP packing belt production line with automatic screen changer
Production description of PP packing strap making machine
The PP strapping production line is designed to manufacture both mechanical and hand-applied strapping.
It primarily utilizes 100% recycled PP granules as raw material, though virgin PP material can also be used for enhanced performance. The produced strapping is widely applied across numerous industries, including mining, retail merchandise, textiles, electrical appliances, instrumentation, construction, and pharmaceuticals.
| Specification | Details |
| Name | PP 1 to 4 strapping production line |
| Model Number | JTPP-110 |
| Applicable Raw Materials | New PP particles, PP recycled materials, PP crushed materials |
| Number of Screws | 1 Screw or double screw |
| Number of Extruded Belts | 4 |
| Width Range | 5-19mm |
| Thickness Range | 0.4-1.2mm |
| Production Capacity | 200kg/h |
| Installation Size | L38 × W2.0 × H4.0 (m) |
Core Advantages: High-Efficiency, Economical, Reliable, and Intelligent PP Strapping Production Line
Our PP strapping production line integrates modern machinery manufacturing with intelligent control technology, delivering exceptional value that exceeds customer expectations. Its key benefits are outlined below:
High Efficiency & Economic Operation
double screw Output: The innovative dual-strand design simultaneously produces two straps, effectively doubling output and significantly enhancing warehouse and logistics efficiency.
Reduced Energy Consumption: With an optimized drive system and thermal process design, coupled with a high-efficiency extruder, the line cuts energy consumption by 20-30% compared to conventional single-strand lines, leading to substantial long-term cost savings.
Exceptional Durability & Operational Stability
Robust Construction: Critical components like the shaping and calibrating water tanks are constructed from high-grade stainless steel, offering superior corrosion and abrasion resistance for an extended service life and a greater return on investment.
Consistent Performance: Precision engineering and a stable temperature control system ensure uniform, flat strapping quality, minimizing breakage and defect rates to guarantee continuous, large-scale production.
FAQ ABOUT PP STRAPPING BAND EXTRUSION LINE
1. For PP(polypropylene) strapping band extrusion line
* What about the output of PP strapping band extrusion line? 150kg/hr, 280kg/hr, 500kg/hr.
* What about the size of strap that the PP strap machine can make? Width: 5-25mm; Thickness: 0.35-1.0mm;
* What about the installation power of the PP strap machine? 135kw/155kw/195kw/439kw;
2. For PET(polyester) strapping band extrusion line
* What about the output of PET strapping band extrusion line? 200kg/hr, 400kg/hr, 600kg/hr, 800kg/hr.
* What about the size of strap that the PET strap machine can make? Width: 9-32mm; Thickness: 0.35-1.2mm;
* What about the installation power of the PET strap machine? 215kw/285kw/352kw/900kw;
