商品の詳細:
|
| 製品タイプ: | PETストラップ製造機 | 原材料: | ペット薄片か100%リサイクルされた材料 |
|---|---|---|---|
| ペット厚さの範囲: | 0.6-12mm | ペット革紐の幅: | 9-32mm |
| 容量: | 200kg/h | ドリブンタイプ: | 電気 |
| 電圧: | 顧客の工場によると | モーター: | シーメンス |
| 製品の色: | 緑/ピンク/黄色/黒 | 応用: | パッケージ化された素材 |
| 提供されるアフターサービス: | ビデオ技術サポート、オンラインサポート | 保証: | 1年 |

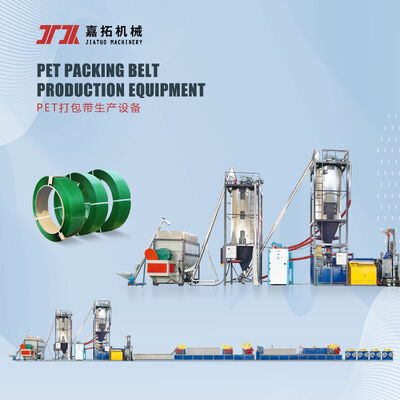

High-Speed PET Strapping Machine: 9–25 mm PET Plastic Steel Strapping Equipment with Automatic Screen Changer
PRODUCT DESCRIPTION
PET strapping production line is a high-speed, intelligent, environmentally friendly plastic equipment, its advantages:
RAW MATERIALS
PET plastic steel belt can use raw materials: 100% bottle flakes or crushed materials or thickening granular materials
1. Bottle flakes--- waste mineral water, Sprite, Coke and other bottle flakes as raw materials, after crushing, cleaning, drying materials.
2. Crushed materials---- finished PET plastic steel belt after crushing, screening, cleaning, drying raw materials;
3. Thickening granular materials----PET crushed materials after processing, cleaning, thickening granular materials
Screw: The PET strapping extruder uses a PET-specific screw with unique parameter design. The screw has a unique separation and mixing effect, ensuring uniform plasticization of the raw materials. It has advantages such as large extrusion volume, good plasticization, high hardness, and high wear resistance.
Fiber Filter Screen: A three-dimensional folded ultra-large area filter device. The unfolded area of the filter screen is 30 times larger than that of traditional flat filter screens; the filter mesh can reach 80 mesh. A unique screen changing device greatly reduces screen changing time and improves work efficiency.
Extrusion Output
| Model | PET-2 | PET-3 | PET-4 | PET-6 | PET-8 |
| Raw materials | Bottle flakes/crushed materials | ||||
| Number of tapes | 2 | 3 | 4 | 6 | 8 |
| Width (mm) | 9-32 | ||||
| Thickness (mm) | 0.4-1.2 | ||||
| Maximum line speed(m/min) | ≧150 | ≧150 | ≧150 | ≧150 | ≧150 |
| Screw Model | 90 | 100 | 125 | 150 | 180 |
| Reducer model | 200 | 250 | 280 | 315 | 350 |
| Dehumidifier | 1000 | 1000 | 2000 | 3000 | 3500 |
| Metering Pumps | 100CC | ||||
| Production capacity /24 H | 5-6T | 7-8T | 10-12T | 12-15T | 18-20T |
PET strapping production line process flow
① Loading →② Mixing raw materials →③ Pre-drying raw materials →④ Vacuum dehumidification of raw materials →⑤ Melting and metering extrusion of raw materials →⑥ Cooling and forming of raw materials (with raw materials) →⑦ Preheating the oven →⑧ Primary stretching →⑨ Secondary stretching →⑩ Embossing →⑪ Oven tempering and shaping →⑫ Cooling →⑬ Finished product winding
ABOUT US:
We have nearly 30 years of production experience in the production of PP PET strapping equipment. We have our own production workshop, processing center, high-precision imported lathes, sales team, after-sales team, management team, etc.; including we currently also produce PP strapping, PET plastic steel strapping, etc., so we are very clear about the process details, the formula ratio of raw materials, and the addition ratio of various auxiliary materials;
We are the agent for the sale of various automatic strapping machines, semi-automatic strapping machines, handheld strapping machines, pneumatic strapping machines, etc., so we are clear about the requirements of different strapping machines for strapping;
We currently have 3 factories:
PP PET strapping equipment factory: 1PCS
PET plastic steel strapping factory: 1PCS
PP strapping factory: 1PCS
FAQ:
Q: What is the voltage of the PET plastic steel belt equipment?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the PET plastic steel belt equipment?
A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H
Q: What is the producible width of the PET plastic steel belt equipment?
A: 9-32mm
Q: Can the PET plastic steel belt equipment be customized?
A: Customization supported
Q: Where does the PET plastic steel belt equipment come from?
A: China.
Q: What are the certifications for the PET plastic steel belt equipment?
A: ISO CEO certification.
Q: What is the minimum order quantity for the PET plastic steel belt equipment?
A: 1 set
Q: What is the weight of the PET plastic steel belt equipment?
20T, 40GP container * 3PCS
