商品の詳細:
|
| 製品タイプ: | pp ストラッティングバンド 製造ライン エクストルーダー | スクロール設計: | のシングルまたはダブル二重ねじSingle-screw |
|---|---|---|---|
| 原材料: | pp | 処理の種類: | エクストルージングマシン |
| 適用する: | シート、ストラップ、パイプ、梱包バンド、テープ、ストラップ | 電圧: | 220Vから240V |
| 駆動方式: | 電気 | 自動化: | オートマティック |
| 保証: | 1 年 | アフターサービス提供: | 海外で機械の修理ができる技術者 |
| ハイライト: | 自動巻PPバンド製造機,ストレートPPバンド製造機,200kg/H PPバンド製造機 |
||
200kg/H PP Strap Making Machine With Automatic Winding Making Straightness PP Strapping 5-19mm

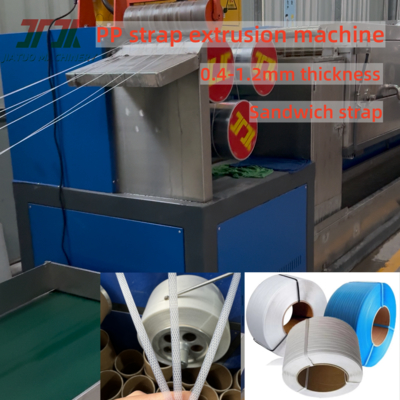

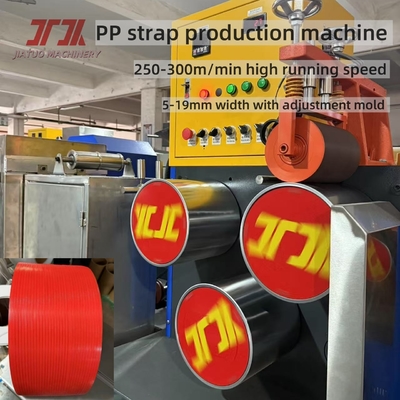

Product description of PP strap making machine
Automatic operation and labor saving, High production, Reasonable drive system and unique oven. Energy saving
Safety, environment protection and economy, Produce lighter weight straps
Produce manual and automatic machine straps, Extrusion capacity: 100kg / h or 250kg / h or 350kg / h 400kg / h
Straps specification: 5-19mm Width,0.4-1.2mm Thickness.
Parameter of PP 2strap output making machine
| Model | PP-90 | PP-100 |
| Extruder model | JT-90 | JT-100 |
| Raw materials | PP pellet,recycled material | PP pellet,recycled material |
| Extrusion quantity | 2 | 4 |
| Product width(mm) | 5-19mm | 5-19mm |
| Product thickness(mm) | 0.4-1.2mm | 0.4-1.2mm |
| Capacity extruder(kg/h) | 100-120kg/H | 230-260kg/H |
| Line speed(m/min) | 250-300m/min | 250-300m/min |
| Total power(kw) | 60 | 90 |
| Length production line(m) | 26 | 28 |
| Materials cool water tank | stainless steel | stainless steel |

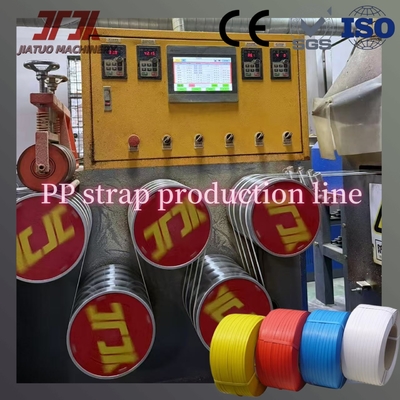

Feature of PP belt production line
1. PP raw materials do not need to separate the dry and water treatment . There are automatic circulation on preheating and drying that save a large number of equipment investment and reduce the production cost by 30%;
2.Utilizing the 100% recycled material as raw materials that reducing the cost to a great extent;
3.With the multi-purpose machine, produce the PP straps in different specifications directly and don not need to change the mould head;
Comparing with new polyester slice, the transparency of products is just the same, but the tensile strength and shock
4.resistance are up to the international grade;
5.Low Energy consumption, but high production capability;
6.Easy to operate, save the manpower and two persons for one production line on average.

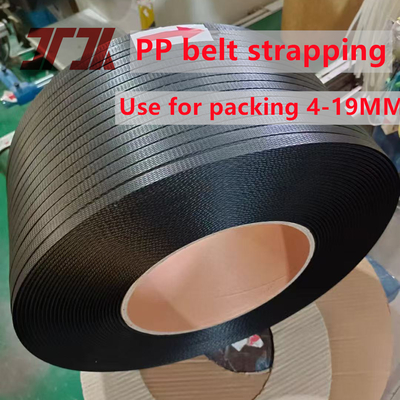

Application of PP strapping
FAQ
1. For PP(polypropylene) strapping band extrusion line
* What about the output of PP strapping band extrusion line? 150kg/hr, 280kg/hr, 500kg/hr.
* What about the size of strap that the PP strap machine can make? Width: 5-25mm; Thickness: 0.35-1.0mm.
* What about the installation power of the PP strap machine? 135kw/155kw/195kw/439kw.
2. For PET(polyester) strapping band extrusion line
* What about the output of PET strapping band extrusion line? 200kg/hr, 400kg/hr, 600kg/hr, 800kg/hr.
* What about the size of strap that the PET strap machine can make? Width: 9-32mm; Thickness: 0.35-1.2mm.
* What about the installation power of the PET strap machine? 215kw/285kw/352kw/900kw.
