商品の詳細:
|
| 名前: | PETテープを作る機械 | 幅: | 9-32 mm |
|---|---|---|---|
| 厚さ: | 0.6-1.2mm | 原材料: | ペットびんの薄片 |
| ネジ材料: | 38crmoala | ネジ寸法:: | 100*2800mm |
| ライン速度: | >100-200m/分 | 制御方法: | PLC |
| ラッピングマシン: | 自動/半自動 | コンテナ: | 40HQ * 3 個 |
| ハイライト: | PET strap making machine 9-32mm,high-speed PET belt production line,PP PET plastic strap machine |
||

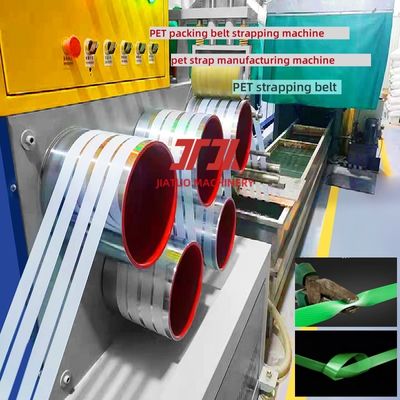

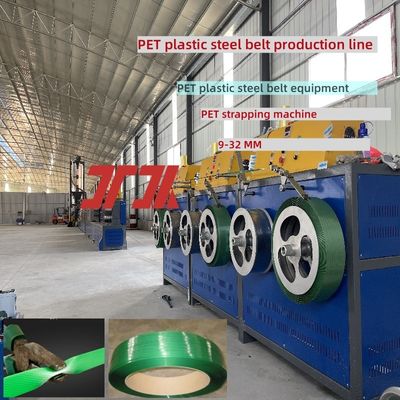

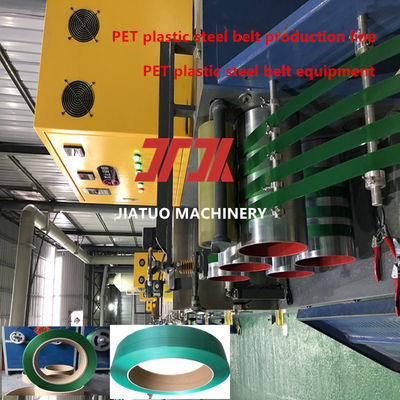

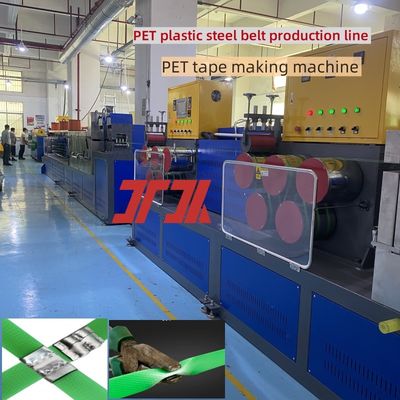

PET packing belt making machine 9-32 mm PET belt production line high-speed PP/PET plastic machine
DESCRIPTION OF PET PACKING BELT MAKING MACHINE
PET packing belt making machine
PET strap making machine/PET belt production line is an energy-saving and environmentally friendly plastic extruder that can produce PET belts with specifications of 9-32mm width and 0.6-1.2mm thickness.
RAW MATERIALS
PET plastic steel belt can use raw materials: 100% bottle flakes or crushed materials or thickening granular materials
1. Bottle flakes--- waste mineral water, Sprite, Coke and other bottle flakes as raw materials, after crushing, cleaning, drying materials.
PRODUCT DESCRIPTION
| Model | PET-2 | PET-3 | PET-4 | PET-6 | PET-8 |
| Raw materials | Bottle flakes/crushed materials | ||||
| Number of tapes | 2 | 3 | 4 | 6 | 8 |
| Width (mm) | 9-32 | ||||
| Thickness (mm) | 0.4-1.2 | ||||
| Maximum line speed(m/min) | ≧150 | ≧150 | ≧150 | ≧150 | ≧150 |
| Screw Model | 90 | 100 | 125 | 150 | 180 |
| Reducer model | 200 | 250 | 280 | 315 | 350 |
| Dehumidifier | 1000 | 1000 | 2000 | 3000 | 3500 |
| Metering Pumps | 100CC | ||||
| Production capacity /24 H | 5-6T | 7-8T | 10-12T | 12-15T | 18-20T |
PET strapping production line process flow
① Loading →② Mixing raw materials →③ Pre-drying raw materials →④ Vacuum dehumidification of raw materials →⑤ Melting and metering extrusion of raw materials →⑥ Cooling and forming of raw materials (with raw materials) →⑦ Preheating the oven →⑧ Primary stretching →⑨ Secondary stretching →⑩ Embossing →⑪ Oven tempering and shaping →⑫ Cooling →⑬ Finished product winding
Why do we need to add PET toughening agent to PET plastic steel belt? What is the role of toughening agent?
THE MAIN FOLE OF PET TOUGHENING AGENT:
Improve impact resistance------By increasing the toughness of PET, it reduces its brittle fracture when impacted.
Improve processing performance------Reducing processing temperature, reducing energy consumption, and improving fluidity to make processing smoother.
Enhance flexibility-------Make PET material softer and suitable for application scenarios that require flexibility.
Improve heat resistance-------Some toughening agents can improve the heat resistance of PET, allowing it to maintain stable performance at high temperatures.
FAQ:
Q: What is the voltage of the PET plastic steel belt equipment?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the PET plastic steel belt equipment?
A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H
Q: What is the producible width of the PET plastic steel belt equipment?
A: 9-32mm
Q: Can the PET plastic steel belt equipment be customized?
A: Customization supported
Q: Where does the PET plastic steel belt equipment come from?
A: China.
Q: What are the certifications for the PET plastic steel belt equipment?
A: ISO CEO certification.
Q: What is the minimum order quantity for the PET plastic steel belt equipment?
A: 1 set
Q: What is the weight of the PET plastic steel belt equipment?
20T, 40GP container * 3PCS
PRODUCT DESCRIPTION
