商品の詳細:
|
| 名前: | PETストラップ製造機械 | 幅: | 9-32 mm |
|---|---|---|---|
| 厚さ: | 0.6-1.2mm | 原材料: | ペットびんの薄片 |
| ネジ材料: | 38crmoala | ネジ寸法:: | 100*2800mm |
| ライン速度: | >100-200m/分 | 制御方法: | PLC |
| ラッピングマシン: | 自動/半自動 | コンテナ: | 40HQ * 3 個 |
| ハイライト: | PET strap manufacturing machine with chemical fiber filter,PET plastic steel strap production line 9-25mm,PET flake material strap making machine |
||

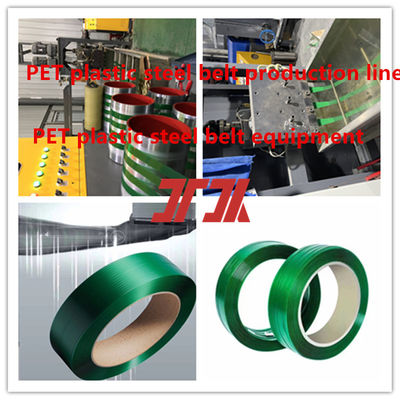

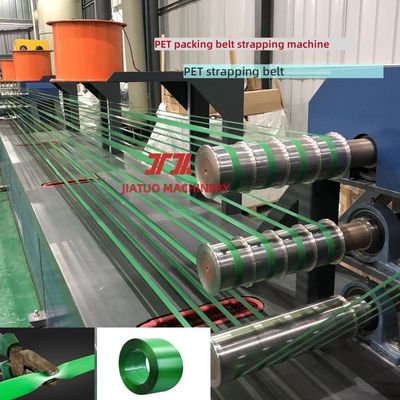

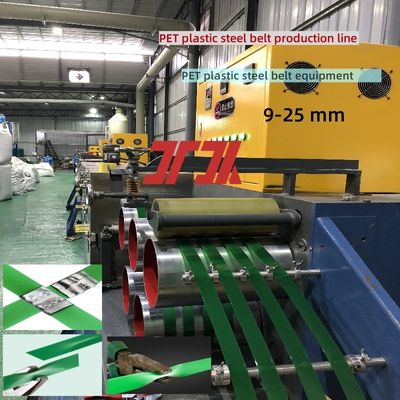

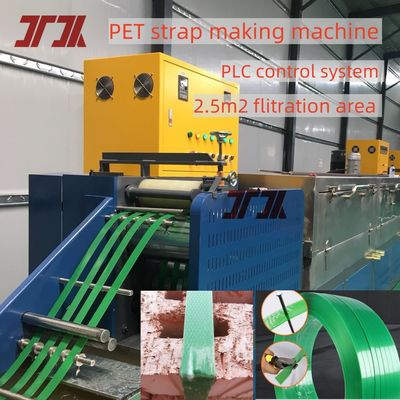

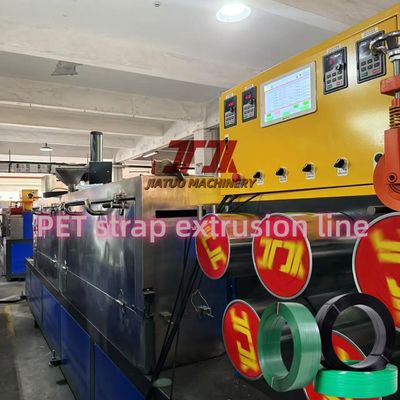

100% PET flake material PET strap manufacturing machine 9-25mm PET plastic steel strap production line with chemical fiber filter screen
DESCRIPTION OF PET STRAPPING BAND MAKINGE MACHINE
PET strapping band making machine
PET strap making machine/PET belt production line is an energy-saving and environmentally friendly plastic extruder that can produce PET belts with specifications of 9-32mm width and 0.6-1.2mm thickness.
Features of PET plastic steel belt:
PET belt, also known as plastic steel belt, is a new type of strapping belt that is currently popular in the world to replace steel belt. It is widely used in steel, aluminum, chemical fiber, cotton spinning, tobacco, paper industry, metal can making and other industries.
Strong tensile strength-----It has both the tensile strength of steel belt and the ductility to resist impact, which can ensure the transportation safety of your products.
Low elongation---- The elongation is only one-sixth of that of polypropylene (PP) belt, and it can maintain tension for a long time.
PRODUCT DESCRIPTION
| Model | PET-2 | PET-3 | PET-4 | PET-6 | PET-8 |
| Raw materials | Bottle flakes/crushed materials | ||||
| Number of tapes | 2 | 3 | 4 | 6 | 8 |
| Width (mm) | 9-32 | ||||
| Thickness (mm) | 0.4-1.2 | ||||
| Maximum line speed(m/min) | ≧150 | ≧150 | ≧150 | ≧150 | ≧150 |
| Screw Model | 90 | 100 | 125 | 150 | 180 |
| Reducer model | 200 | 250 | 280 | 315 | 350 |
| Dehumidifier | 1000 | 1000 | 2000 | 3000 | 3500 |
| Metering Pumps | 100CC | ||||
| Production capacity /24 H | 5-6T | 7-8T | 10-12T | 12-15T | 18-20T |
PET strapping production line process flow
① Loading →② Mixing raw materials →③ Pre-drying raw materials →④ Vacuum dehumidification of raw materials →⑤ Melting and metering extrusion of raw materials →⑥ Cooling and forming of raw materials (with raw materials) →⑦ Preheating the oven →⑧ Primary stretching →⑨ Secondary stretching →⑩ Embossing →⑪ Oven tempering and shaping →⑫ Cooling →⑬ Finished product winding
Application range of PET plastic steel belt:
PET packing tape, PET plastic steel strapping tape, is widely used in the strapping of various heavy goods and used to fix the goods during transportation. In warehouses, PET packing tape is also often used to fix goods and is used in heavy industries, such as the strapping and fixing of building materials.
FAQ:
Q: What is the voltage of the PET plastic steel belt equipment?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the PET plastic steel belt equipment?
A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H
Q: What is the producible width of the PET plastic steel belt equipment?
A: 9-32mm
Q: Can the PET plastic steel belt equipment be customized?
A: Customization supported
Q: Where does the PET plastic steel belt equipment come from?
A: China.
Q: What are the certifications for the PET plastic steel belt equipment?
A: ISO CEO certification.
Q: What is the minimum order quantity for the PET plastic steel belt equipment?
A: 1 set
Q: What is the weight of the PET plastic steel belt equipment?
20T, 40GP container * 3PCS
