商品の詳細:
|
| 名前: | PET結束機 | ネジモデル: | 100 |
|---|---|---|---|
| 生産能力: | 300kgs/h | 保証: | 1年 |
| 押し出されたストラップの数: | 3 | 適用範囲: | れんが工場、金属、鋼鉄、アルミニウム、ビール醸造所 |
| スクリーンチェンジャー: | 二重シリンダー/単一シリンダー | 厚さの範囲: | 0.4～1.2mm |
| 幅の範囲: | 9-32mm | 適用原材料: | びんの薄片材料、100%の壊れた材料 |

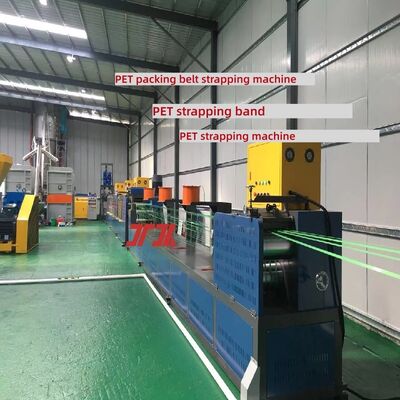

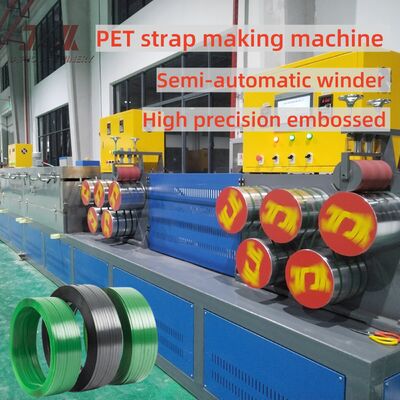

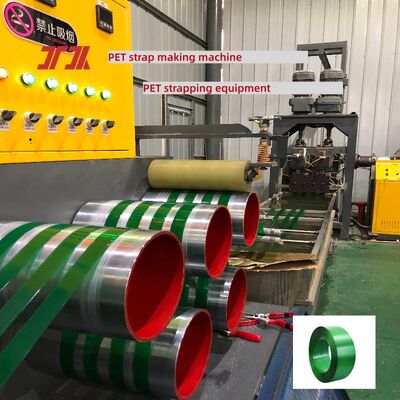

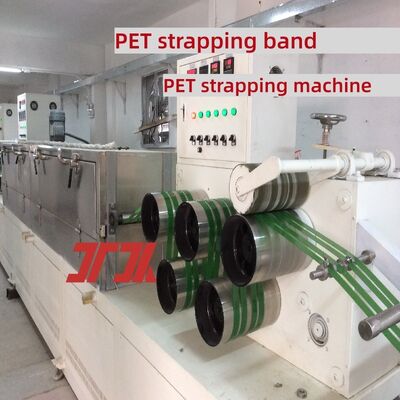

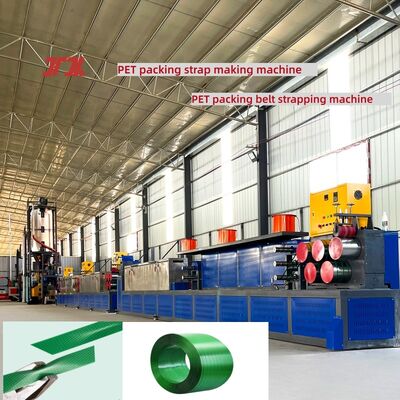

100–500 kg/h PET Strapping Machine PET Strapping Production Line with Featuring Low Energy Consumption
PRODUCT DESCRIPTION :
PET strapping production line is a high-speed, intelligent, environmentally friendly plastic equipment, its advantages:
Raw materials: PET plastic steel belt can use raw materials: 100% bottle flakes or crushed materials or thickening granular materials
1. Bottle flakes--- waste mineral water, Sprite, Coke and other bottle flakes as raw materials, after crushing, cleaning, drying materials.
2. Crushed materials---- finished PET plastic steel belt after crushing, screening, cleaning, drying raw materials;
3. Thickening granular materials---- PET crushed materials after processing, cleaning, thickening granular materials
EXTRUSION PARAMETERS TABLE
| Name | PET strap making machine |
| Applicable raw materials | Bottle flake material, 100% broken material |
| Number of screws | Single Screw ( 38CrMoALA) |
| Screw size | Ø100*2800 |
| Number of extruded belts | 3 |
| Width range | 9-32mm |
| Thickness range | 0.4-1.2mm |
| Production capacity | 300-350kg/h (according to the weight of each meter) |
| Metering Pumps | 100CC |
Regarding the Environmental Impact of the Machine:
PET strapping uses safe and environmentally friendly raw materials, making operation and recycling more convenient.

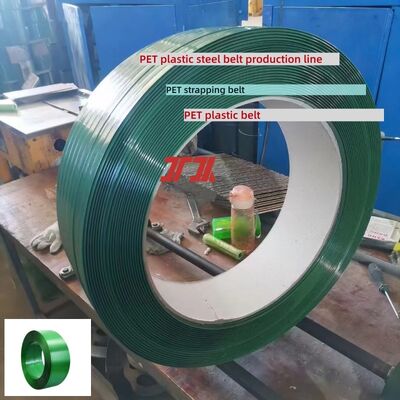

No Sharp Edges----- Soft texture, unlike steel strapping, it avoids scratches to operators and will not damage the surface of packaged goods (such as sheets, profiles, cartons, etc.). Lightweight and easy to handle: With a density of only 1.38g/cm³, about 1/6 that of steel strapping, it is lighter for the same length, requiring less effort when manually binding and reducing the load on the equipment when used with a strapping machine.
Energy Consumption-----The PET strapping machine offers advantages such as high output and low energy consumption; the new process equipment can save over 30% on electricity costs.
ADVANTAGES:
1. It can use 100% PET bottle flakes or crushed materials to produce high-end PET strapping belt;
2. It can produce 1, 2, 4 or 8 strapping belt at the same time according to user requirements;
3. Advanced PLC operation control system, high degree of automation, saving labor costs;
4. Energy-saving and high efficiency, saving production costs; high output and low power consumption.
1.Are you manufacturer or trading company?
2.China is far from our country, if our machine have any question that what would you do it?
We have a warranty by one year, we will conduct a chatting online with you to solve the question if have any question, and we will send the new one to change, if we find the question of the machine is other spare parts was damaged.
By the way our machine of the quality is the best one, we are confident in saying that you can using it without any question over 10 years,we have great after-sales service.
3.If we buy your machines, can you offer us wear-out spare parts?
We will provide some wear-out spare parts free of charge, it will send to you with the machine.
4.How am I suppose to trust you the machine I received matches your description?
Appearance of final products may differ from pictures shown, but we can make sure each component and technical parameters remains the same as quoted, we also provide videos of whole traceable production process if necessary.
